Masimo's breakthrough noninvasive monitoring technologies can be integrated into a range of multi-parameter and multi-use monitoring devices with our family of MX and MSX series circuit boards.

MX series boards—when used with Masimo rainbow^® multiple wavelength LED sensors—are capable of providing the full suite of Masimo rainbow^® measurements, including Total Hemoglobin (SpHb^®), Oxygen Content (SpOC™), Carboxyhemoglobin (SpCO^®), Methemoglobin (SpMet^®), and Acoustic Respiration Rate (RRa^®), in addition to Masimo SET^® Measure-through Motion and Low Perfusion™ pulse oximetry measurements SpO₂, Pulse Rate, Perfusion Index, and Pleth Variability Index (PVi^®).

The MSX-2040 board uses about a third of the power and is only half the physical size of previously available Signal Extraction Technology^® pulse oximetry solutions—while providing the same proven Measure-through Motion and Low Perfusion capabilities.

The MSX-2040 board is also available as an external “board-in-cable” solution embedded within a completely self-contained patient cable* (uSpO₂), providing Masimo SET^® pulse oximetry capabilities externally for existing devices not presently compatible with integrated pulse oximetry solutions.

Now available SedLine Brain Function Monitoring and O3 Regional Oximeter with Masimo Open Connect (MOC-9) Measurement Module

*This cable is also available unterminated.

MX-5

MX-5

Masimo rainbow SET™ OEM Board

Dimensions and specifications for the MX-5 board are as follows:

• Size: 2 inches by 2.5 inches
• Board thickness: 0.062 inches
• Mounting hole diameter: 0.125 inches

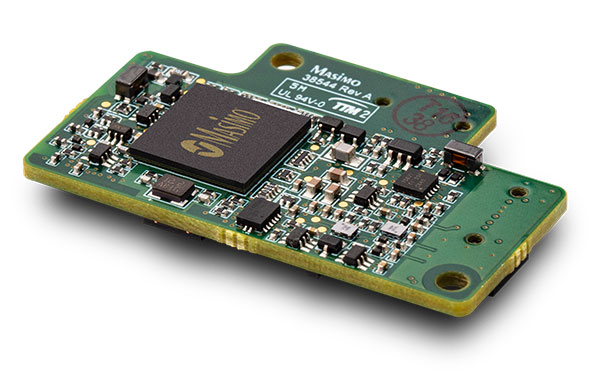

MSX-2040D

MSX-2040D

Masimo SET^® OEM Board

Dimensions and specifications for the MSX-2040D are as follows:

• Size: 1.14 inches by 1.80 inches
• Board thickness: 0.062 inches
• Mounting hole diameter: 0.110 inches

SedLine Module

SedLine Module

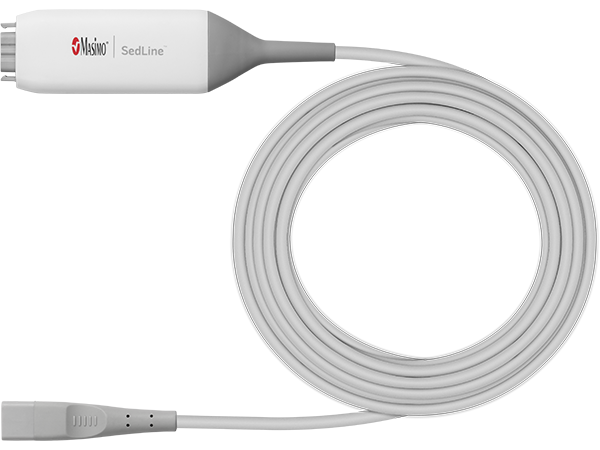

SedLine Brain Function Monitoring with Masimo Open Connect (MOC-9) Measurement Module

Typical Module Dimensions

• 1.3 in (3.3 cm) Width
• 4.0 in (10.2 cm) Length
• 0.8 in (2.0 cm) Thickness
• 12 ft (3.6 m) Cable Length

O3 Module

O3 Module

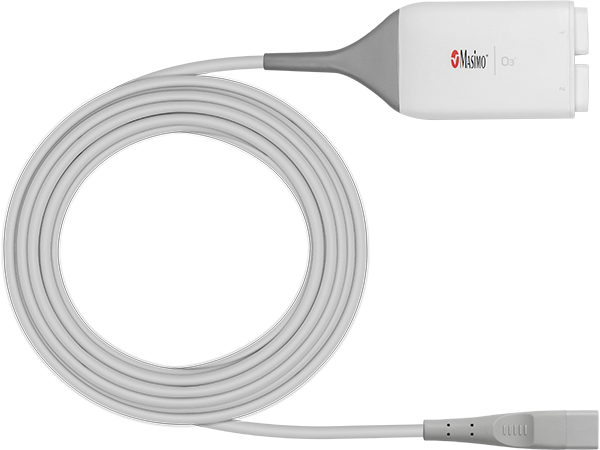

O3 Regional Oximeter with Masimo Open Connect (MOC-9) Measurement Module

Typical Module Dimensions

• 1.8 in (4.60 cm) Width
• 4.0 in (10.2 cm) Length
• 1.25 in (3.2 cm) Thickness
• 12 ft (3.6 m) Cable Length

uSpO2 USB Cable

uSpO2 USB Cable

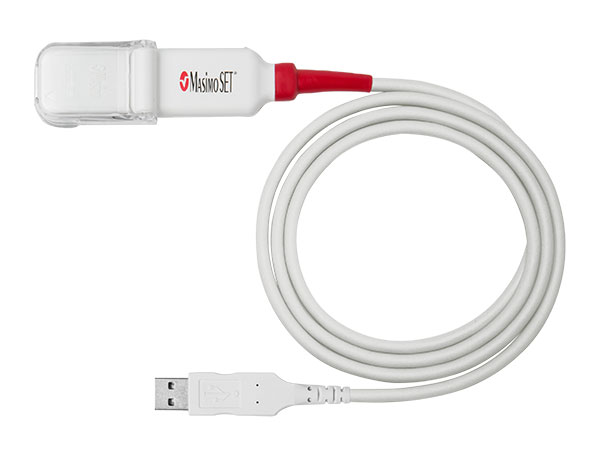

Masimo SET^® Pulse Oximetry Cable

Dimensions and specifications for the uSpO2 USB cable are as follows:

• Size: 1.20 inches by 3.60 inches
• Thickness: 0.90 inches
